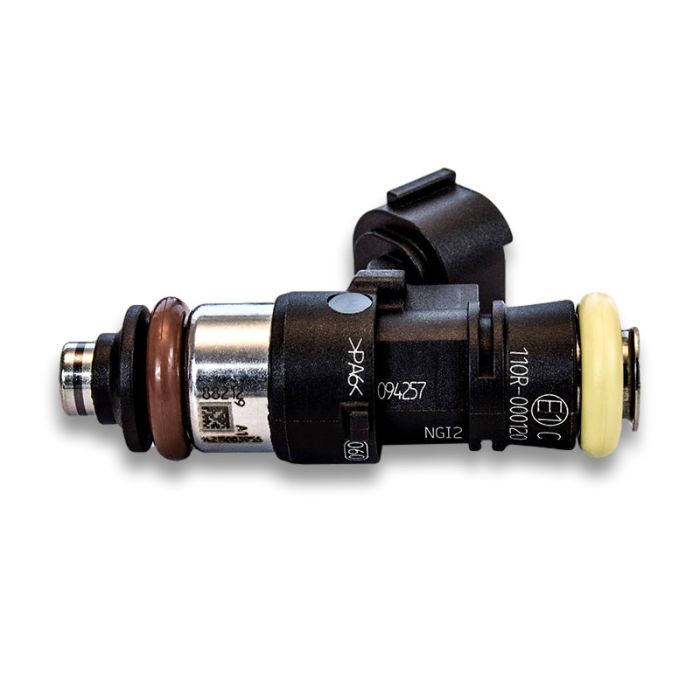

Bosch 2200cc injectors

Bosch 2200cc injectors

€85,00 EUR
€85,00 EUR
Sale Sold out
Taxes included.
  • Dynamic flow matched in groups with 1% tolerance.
  • EV14 is the latest technology from Bosch. Much better and easier to map than earlier EV1 1600cc injectors.
  • Resistance: 9 Ohm / High resistance. Works for most engine controls and does not require resistors.
  • Connector: Nippon Denso (Sumitomo).
  • Static flow at 3bar (43.5psi) = 2200 cc / min.
  • Static flow at 4bar (58.0psi) = 2550 cc / min.
  • Static flow at 5bar (72.5psi) = 2865 cc / min.
  • No replaceable built-in filter in these injectors. Therefore, we deliver these with top adapter with filters in.
  • Dimensions o-ring to o-ring = 63mm (43 without adapter).
  • Deadtime: 0.45ms = 14volt.
  • Upper and lower O rings of Viton.
  • Adapter is available with 14.5mm top o-ring or 11mm top o-ring (Japanese fuelrail). Select adapter type.
